Benderpro-32D - Automatic Rule Bender for Steel Rule Processing

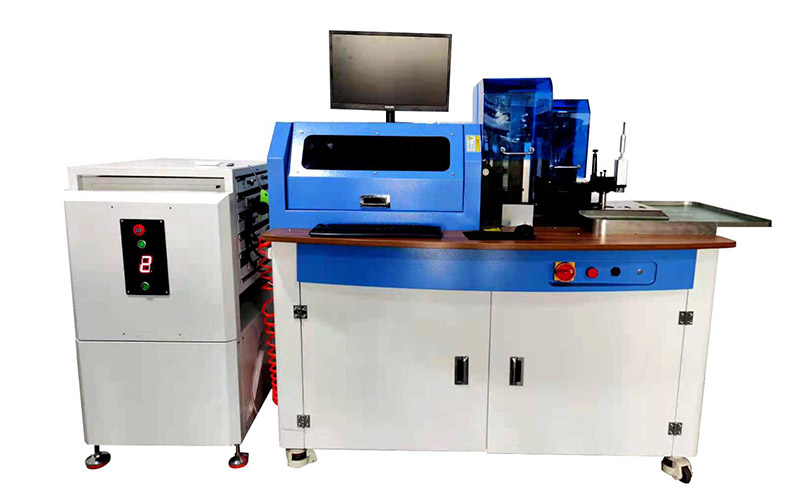

Benderpro-32D automatic steel rule bender is an all-in-one machine equipped with dual ballscrew feeding system, delivering efficient and accurate bending, straight cutting, lipping (mitering), bridging (height notching), broaching, nicking and perforating. Both bridge height and lip size are adjustable.
Applications
This automatic steel rule bending and processing machine is typically designed for manufacturing laser steel rule dies used in a number industries such as electronic boards, rigid boxes, carton boxes, blister packs, hang tags, stickers, wine boxes, gift boxes, leather products, etc.
Technical Specifications
- Max. bend angle: 95°
- Rule height: 7-32mm
- Rule thickness: 0.45-1.07mm
- Broaching wheel: 115°, 150° (rectangle shape), 115°, 150° (square shape)
- Nicking wheel: 0.3-0.5mm width
- Min. radius to be bent 180°: R3.5
- Min. radius to be bent 90°: R1.0
- Min. bending size: 1.5mm
- Min. cutting size: 1mm
- Support format: DWG, DXF, AI
- Machine dimensions: 2000×900×1500mm
- Machine weight: 500kg
- Computer configuration: Intel I3 CPU, RAM 4GB, Windows7
- Power supply: single phase 220V, 20A, 50/60Hz, 2kW
- Air pressure: 6-8kg/cm
Options
- Perforating (tooling size 1-2mm)
- Hole punching (e.g. round hole, euro hole)
- Nicking (tooling size 0.2-1mm)
Features
- Independently developed dual ballscrew feeding and clamping unit holds the steel rule and conducts continuous feeding, significantly improving production efficiency and precision;
- Modular cutting unit is adjustable to accommodate different-height cutting materials of the same bevel height;
- 3 sets of broaching tools are available to realize angels of 115° and 150°, broaching depth is adjustable by software;
- Mold is made of imported high grade steel which is hardened by heat treating process, offering high strength and strong durability;
- Machine body is constructed with robust welded structure of square steel tubing, and processed utilizing gantry milling machine to ensure the high assembling precision and high stability of the machine;
- Large torque servo motor is adopted to generate high cutting force, high cutting speed and exceptional stability, enabling the blades to be assembled with seamless joints;
- Cutting and bending tools feature accurate positioning function, easy to maintenance;
