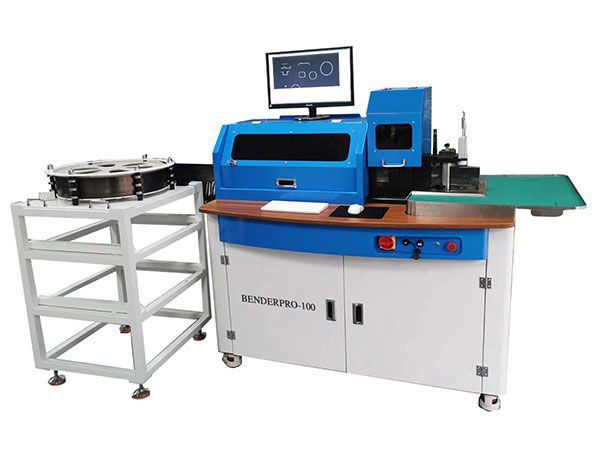

Benderpro-100 – Automatic Steel Rule Bender & Processor
Benderpro-100 automatic rule bender is a versatile steel rule processing system that combines bending, straight cutting, lipping and bridging tools, the bridge height and lip size are adjustable automatically. This automatic rule bender features dual ballscrew feeding system which greatly shortens the time required for rule processing.
Examples of Bended Steel Rules
Applications
Benderpro-100 automatic steel rule bender processor is mainly suitable for manufacturing laser steel rule dies used in production of folding carton boxes, blister packs, hang tags, leather products, etc.
Technical Specifications
- Max. bend angle: 95°
- Rule height: 50-100mm
- Rule thickness: 0.71-1.42mm
- Min. radius to be bent 180°: R3.5
- Min. radius to be bent 90°: R1.0
- Min. bending size: 1.5mm
- Min. cutting size: 1mm
- Support format: DWG, DXF, AI
- Machine dimensions: 2000×900×1500mm
- Machine weight: 500kg
- Computer configuration: Intel I3 CPU, RAM 4GB, Windows7
- Power supply: single phase 220V, 20A, 50/60Hz, 2kW
- Air pressure: 6-8kg/cm
Options
- Nicking
- Perforating (customizable)
- Hole punching (customizable)
Software Support
- Developed on the basis of AutoCAD platform, the software is more stable and easy to draw and modify design templates;
- In compliance with the standard operations of AutoCAD, our software offers over 40 auxiliary functions of CAD (computer-aided design) to satisfy our customer’s specific needs;
- Available in three pattern selection modes (i.e. single pattern selection, smart selection and one-button pattern selection), automatic releasing, automatic prompt when cutting, and automatic interference avoidance;
- Intelligent processing and easy-to-use, operator can master the software by only requiring 2-hour training, greatly reducing labor costs while improving working efficiency;
- User manual is available for online assistance, allowing users to access at any time for quick solving their needs and issues they faced;
Features
- Independently developed dual ballscrew feeding and clamping unit holds the steel rule and conducts continuous feeding, significantly improving production efficiency and precision;
- Modular cutting unit is adjustable to accommodate different-height cutting materials of the same bevel height;
- Mold is made of imported high grade steel which is hardened by heat treating process, offering high strength and strong durability;
- Machine body is constructed with robust welded structure of square steel tubing, and processed utilizing gantry milling machine to ensure the high assembling precision and high stability of the machine;
- Imported hydraulic system is adopted to generate high cutting force and exceptional stability, enabling the blades to be assembled with seamless joints;
- Cutting and bending tools feature accurate positioning function, easy to maintenance;
