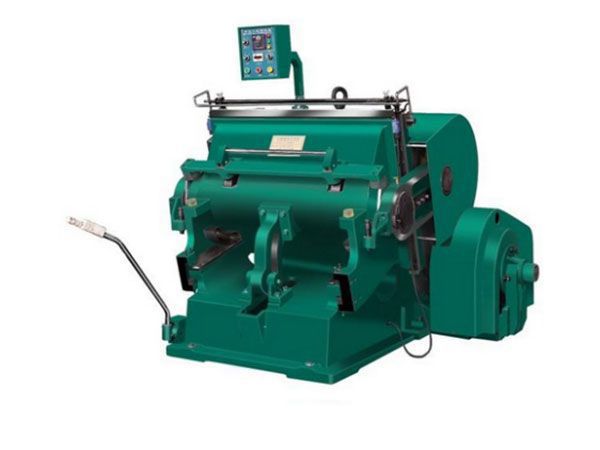

Clamshell Die Cutter (Creasing and Die-cutting)
Our BD series clamshell die cutter is engineered for accurate die cutting and creasing of a variety of materials including cardboard, corrugated board, plastic and leather. It is widely used in the fields of printing, packaging, decoration and plastic. This die cutting and creasing machine has been well welcomed in the market due to its features of compact structure, high precision, easy operation and reliable performance.
Examples of Finished Products
Specifications
| Model | Max. rule area (mm) | Working speed (strokes/min) |
| |
930×670 | 23±2 |
| |
940×670 | 21±2 |
| |
750×520 | 25±2 |
| |
1040×720 | 21±2 |
| |
1100×800 | 20±2 |
| |
1200×850 | 18±2 |
| |
1400×1000 | 17±2 |
| |
1500×1100 | 17±2 |
| |
1600×1250 | 16±2 |
Features
- Sliding bearings are made of high quality copper alloy, thus enhancing the performance of anti-friction and reducing mechanical vibration;
- Flywheel with a big moment of force and high pressure;
- Machine body is built in cast iron construction, guaranteeing a high strength and robust structure;
- Single-disc electromagnetic clutch ensures good flexibility and reliability;
- Offered with functions of single piece, continuous and opening delay operations;
- Reasonable design of operating position, optimum opening angle of moving bed;
- Safety protection system guarantees the safety of operator;
BENDER is an enterprise specialized in providing steel rule die making and box making companies with die making
solutions. We are able to manufacture appropriate diemaking tools and die making consumables from rule bender to die
board for customers’ demands. We know what die makers and box plants need to stay ahead in their competitive market,
as
a diemaking equipment manufacturer we continually invest in innovative solutions to ensure we are at the forefront
of
the industry of steel rule die fabrication. In addition to selling die making equipment and laser cutting systems,
we
are providing technical support as well to worldwide customers, wherever they are located.
