Manual Diemaking Machines and Diemaking Supplies

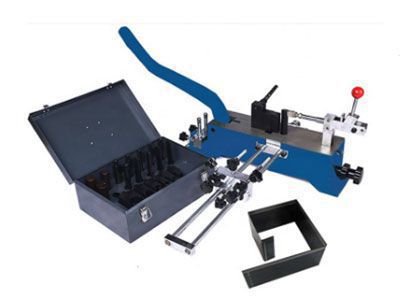

Rule Bender, QY-25B

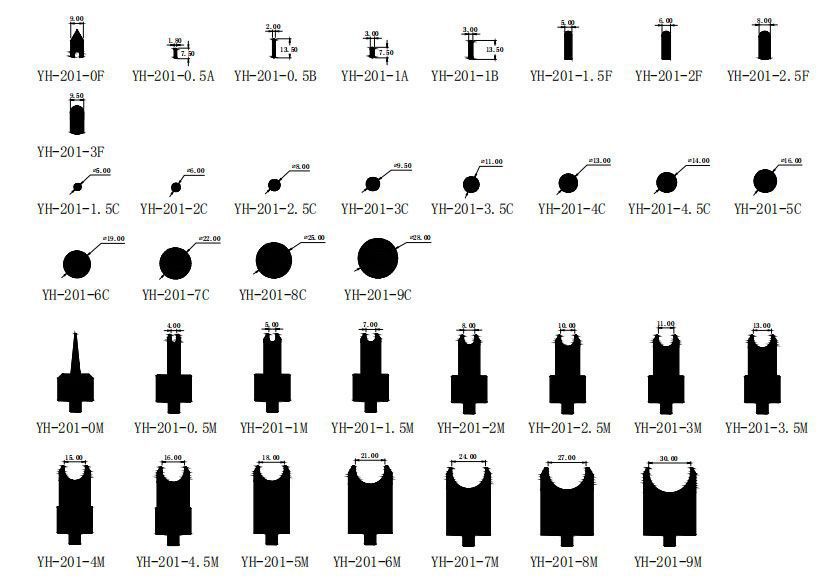

QY-25B rule bender is a manual tool for steel rule bending with high precision of ±0.03mm. It is supplied with 36 bending tools to bend steel rules into square, round and irregular shapes per users’ individual needs.
Specifications
- Bending width: 25mm
- Rule thickness: 1.5mm
- Precision: ±0.03mm
Rule Cutting Lipping Machine, QY-26B
QY-26B manual rule cutting and lipping machine is suitable for straight cutting and lip cutting steel rules of thickness within 1.5mm. The angle for lipping is available in 42 degree and 52 degree.
Specifications
- Rule thickness: 0.45/0.53/1.05/1.42/1.5mm
- Cutting height: 8-30mm / 23.8-40mm
- Lipping angle: 42 degree, 52 degree
- Dimensions: 590×320×700mm
Rule Notching Machine, QY-6
QY-6 rule notching machine is suitable for processing steel rules with notch width of 6 to 9mm (other width can be customized), and notch depth of 0 to 25mm. The max. thickness of steel rule is up to 2mm.
Specifications
- Rule thickness: 0.45/0.53/0.71/1.05/1.42mm
- Rule height: 8-30mm / 23.8-40mm
- Dimensions: 200×500×150mm

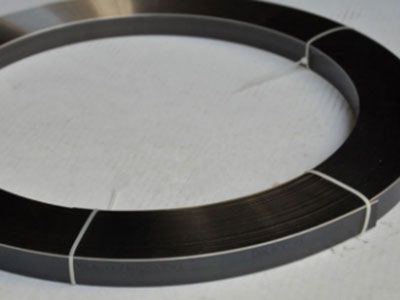

Cutting Rules
- Bevel degree: 50°+10°
- Height: 23.30/23.60/23.80/30.00/35.00/40.00/50.0mm
- Thickness: 0.71/1.07mm
- Package: 1box=100pieces=100m, 1coil=100m
Plywood (Flat Dieboard)
- Thickness: 8-18mm
- Size: 1200×2400×18mm
- Material: Birch, Poplar

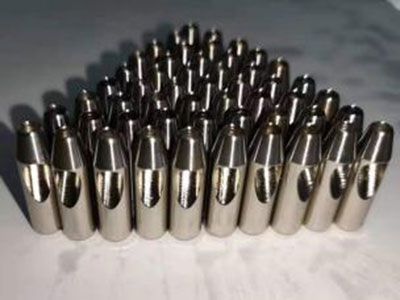

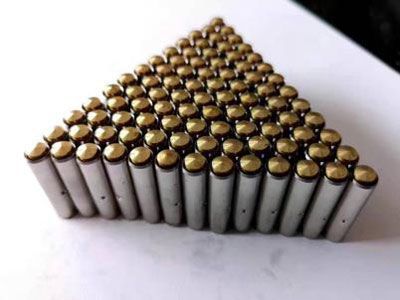

Die Cutting Punches (Side Outlet)
- Diameter: 0.5-16mm
- Height: 23.8mm
- Bevel: center bevel

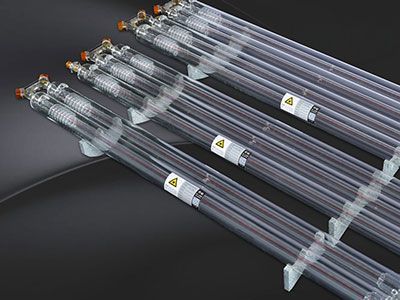

CO2 Laser Tube
- Laser type: sealed-off CO2
- Laser power: 150/300/400/600W
- Application: cutting and engraving
- Applicable material: Nonmetal (MDF, Acrylic, Plywood...)/ Metal (Stainless steel, carbon steel ...)
- Cooling method: ordinary water-cooled/professional water-cooled
- Working life: >5000 hrs.
- Warranty: 1 year
