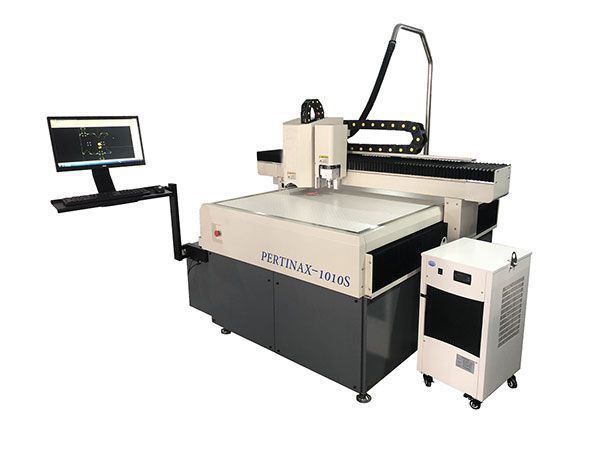

Milling Machine for Pertinax Counter, PERTINAX-1010S

Milling Center
Inquiry

PERTINAX-1010S milling machine is developed especially for production of Pertinax counters, the machining precision can reach ±0.03mm. It is equipped with a 6 tools holder to allow operator to do more complex jobs. Z-axis adopts exclusively designed control unit, automatic aligning system and follow-up processing method, ensuring processing precision. This milling machine can also accomplish rubber cutting, sample making and plotting processes.

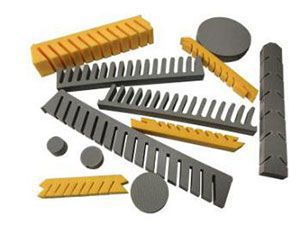

Examples

Examples
Examples
Examples

Technical Specifications

  • Spindle speed: 1000-60000RPM
  • Spindle power: 1.2kW
  • Cutting speed: 3000mm/min
  • Working area: 1060×1080mm
  • Cutting accuracy: ±0.02mm
  • Spindle tolerance: < 0.005mm
  • Repeat accuracy: ±0.01mm
  • Tool tolerance: < 0.005mm
  • Worktable height: 1.1m
  • Operating mode: Follow-up & CNC
  • Power supply: Three phase 380V±5%\50/60Hz
  • Plotting tool: optional
  • Sample cutting function: optional

Features

  • Features

    Self-developed Pertinax counter machine software, can automatically form creasing channels according to the design before cutting;

  • Features

    1.2kW high speed spindle is adopted in quick tool changer, 6 tools holder allows to conduct jobs of creasing, positioning hole drilling, chamfering, cutting and plotting; The software can automatically generate optimal processing path, greatly improving efficiency while guaranteeing processing quality;

  • Features

    Z-axis adopts exclusive design of control mode, automatic aligning and follow-up processing method to provide high processing precision; Computer-controlled depth adjustment gives great operation convenience while ensuring high consistency of creasing depth;

  • Oscillating knife is optional to cut ejection rubber;
  • High efficiency vacuum cleaner to keep the material surface clean;
  • Interlock protection of machine hardware efficiently prevents spindle from damages caused by signal issues;
BENDER is an enterprise specialized in providing steel rule die making and box making companies with die making solutions. We are able to manufacture appropriate diemaking tools and die making consumables from rule bender to die board for customers’ demands. We know what die makers and box plants need to stay ahead in their competitive market, as a diemaking equipment manufacturer we continually invest in innovative solutions to ensure we are at the forefront of the industry of steel rule die fabrication. In addition to selling die making equipment and laser cutting systems, we are providing technical support as well to worldwide customers, wherever they are located.
