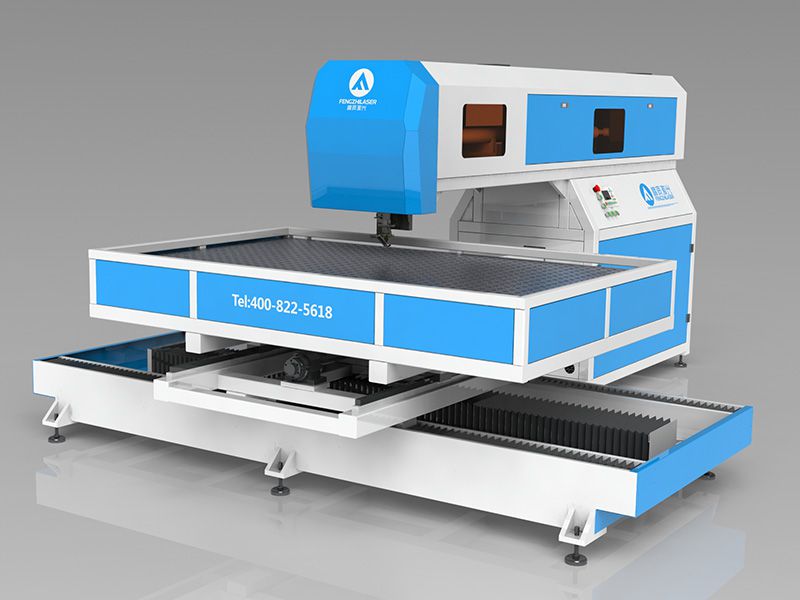

CO2 Laser Cutting Machine (400w/ 600w/ 800w)
Our medium power laser die board cutting machine is particularly designed for cutting die boards of various materials, such as wooden die board, steel die board, etc. It adopts CO2 sealed glass laser tube with laser power of 400W, cutting speed is up to 30m per hour. This CO2 laser cutting machine is offered with standard worktable size of 1200×1800mm, other worktable sizes are customizable for individual cutting demands.
Applicable Materials
Wood, MDF, Acrylic, Steel, Stainless Steel
Industries
- Printing
- Packaging
- Die board
- Advertising
- and more…
Technical Specifications
- Laser power: 400W
- Working area: 1200×1800mm
- X-axis travel: 1200mm
- Y-axis travel1800mm
- Machine weight: 2000kg
- Floor space: 4000×4000mm
- Laser tube: CO2 sealed glass laser tube
- Driving system: imported ballscrew guide rail transmission
- Control system: motion control card
- Positioning accuracy: ±0.05mm/m
- Cutting thickness: 6-22mm
- Cutting gap: 0.45mm, 0.71mm, 1.05mm... (adjustable)
- Cooling system: water cooling
- Power supply: 220V/50Hz/20A
Features
- Suitable for cutting wood board, medium-density fibreboard (MDF), steel sheet, stainless steel sheet, etc.;
- Designed in compliance with the principle of constant optical path, ensuring good stability of the optical path;
- Open worktable design allows for a higher material usage rate;
- Imported high precision bi-directional ballscrew ensures smooth transmission;
- Machine body is subjected to high-temperature heat treatment, and machined by large gantry milling machine, extending its service life to 20 years without deformation;
- Precision transmission parts are placed in an enclosed housing, preventing from being contaminated while ensuring a longer service life;
- Can be directly started with no need for warm-up time, low power consumption of 4-5kWh;
- Auxiliary gas is not required, efficiently lowering operation cost;
BENDER is an enterprise specialized in providing steel rule die making and box making companies with die making
solutions. We are able to manufacture appropriate diemaking tools and die making consumables from rule bender to die
board for customers’ demands. We know what die makers and box plants need to stay ahead in their competitive market,
as
a diemaking equipment manufacturer we continually invest in innovative solutions to ensure we are at the forefront
of
the industry of steel rule die fabrication. In addition to selling die making equipment and laser cutting systems,
we
are providing technical support as well to worldwide customers, wherever they are located.
