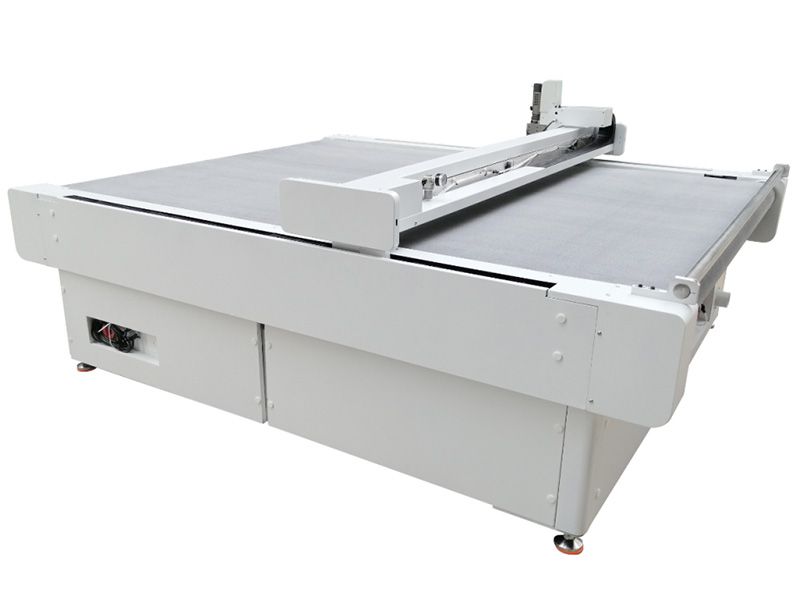

Digital Cutter for Box Sample and Rubber Cutting
Our digital cutter is a high speed digital cutting system suited to sample making and prototyping. It can handle an extensive range of non-metallic materials cutting applications, including folding cartons, corrugated cardboard, honeycomb cardboard, paperboard, PP hollow board, gaskets, EVA board, PS foam board, expanded PVC sheet, leather, fabric, etc.

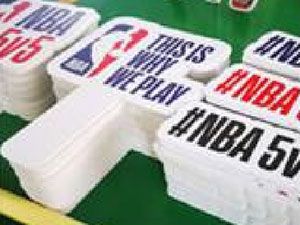

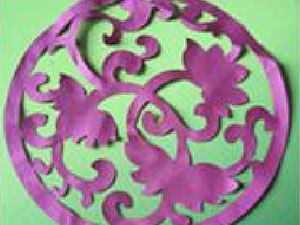

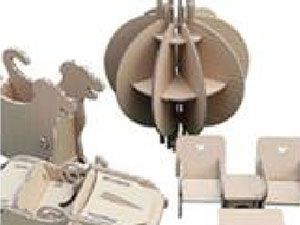

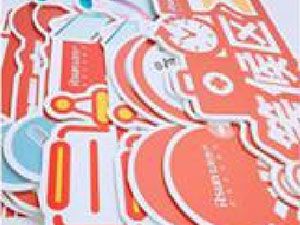

Examples of Finished Products
Printed packaging box
Corrugated cardboard
Honeycomb cardboard
Clear plastic folding box
Rigid box
PP hollow board
EVA board

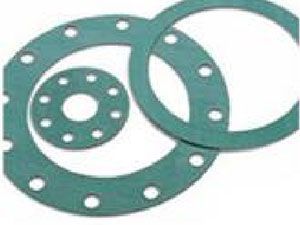

Gaskets
PS foam board
Expanded PVC sheet
Leather
Fabric
Technical Specifications
- Max. cutting speed: 1800mm/s
- Max. cutting thickness: 60mm
- Cutting accuracy: ±0.05mm
- Cutting tools: oscillating knife, creasing wheel, plotting pen, drag knife
- Optional configurations: V-cut tool, foam board cutting tool, CCD camera positioning system
- Power supply: 380V 50Hz
- Material hold-down: vacuum clamping
- Worktable: aluminum alloy honeycomb platform equipped with a self-diagnosis system to detect the distance between tabletop and tool, can achieve high precision tabletop height compensation
- Control panel: touch screen HMI interface (English/Chinese)
- Driving system: Panasonic servo drive
- Transmission: linear guide rail + rack and pinion
- Interface: Ethernet port
- Data Format: HPGL (compatible with various CAD software)
Options
| Machine model | |
|
|
| Cutting area | 1300×1000mm | 1700×1300mm | 2500×1600m |
| Machine dimensions | 2100×1900mm | 2600×2100mm | 3300×2400mm |
| Machine weight | 600kg | 720kg | 900kg |
Features
-
High precision rack and pinion transmission
Accurate cutting 0.05mm;
High speed cutting 1.8m/s; -
Panasonic servo drive
Servo driven computer controlled cutting tools and creasing wheels for precise depth, can perfectly do the job of through-cutting, half-cutting, creasing and V-cutting;
