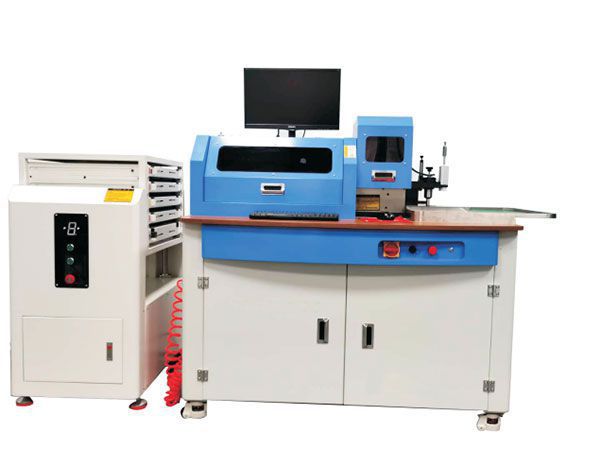

BendPro-32A – Automatic Rule Processing Machine & Steel Rule Bender
Benderpro-32A automatic rule processing machine is offered in configurations of bending, straight cutting, lipping and bridging / notching tools. The bridge height and lip size are adjustable. Dual ballscrew feeding system is equipped to improve efficiency of rule processing.

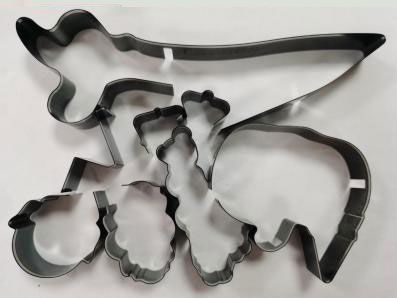

Examples of Bended Steel Rules
Applications
Benderpro-32A automatic steel rule bending and processing machine is widely applicable to fabricate laser steel rule dies used in a number industries such as rigid boxes, carton boxes, blister packs, hang tags, stickers, wine boxes, gift boxes, leather products, etc.
Technical Specifications
- Max. bend angle: 95°
- Rule height: 7-32mm (50mm customizable)
- Rule thickness: 0.45-1.07mm (1.42mm customizable)
- Min. radius to be bent 180°: R3.5
- Min. radius to be bent 90°: R1.0
- Min. bending size: 1.5mm
- Min. cutting size: 1mm
- Support format: DWG, DXF, AI
- Machine dimensions: 2000×900×1500mm
- Machine weight: 500kg
- Computer configuration: Intel I3 CPU, RAM 4GB, Windows7
- Power supply: single phase 220V, 20A, 50/60Hz, 2kW
- Air pressure: 6-8kg/cm
Options
- Nicking
- Perforating (customizable)
- Hole punching (customizable)
Features
- Independently developed dual ballscrew feeding and clamping unit holds the steel rule and conducts continuous feeding, significantly improving production efficiency and precision;
- Modular cutting unit is adjustable to accommodate different-height cutting materials of the same bevel height;
- Mold is made of imported high grade steel which is hardened by heat treating process, offering high strength and strong durability;
- Machine body is constructed with robust welded structure of square steel tubing, and processed utilizing gantry milling machine to ensure the high assembling precision and high stability of the machine;
- Large torque servo motor is adopted to generate high cutting force, high cutting speed and exceptional stability, enabling the blades to be assembled with seamless joints;
- Cutting and bending tools feature accurate positioning function, easy to maintenance;
