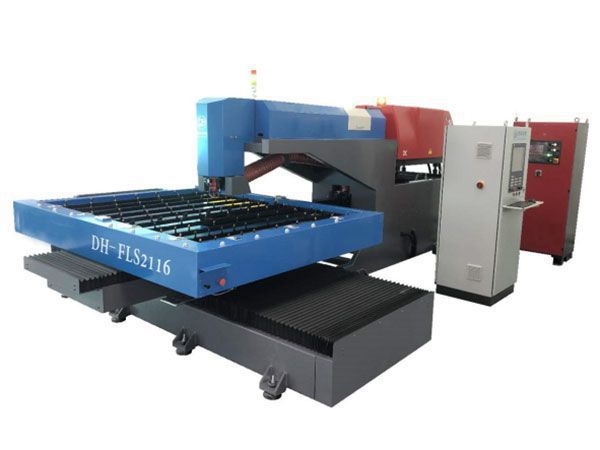

High-power Die Board Laser Cutting Machine (1500w/ 2000w)
Technical Specifications
- Working area: 1820×1220mm
- Laser optical path: fixed optical path
- Driving system: servo motor + precision ground ballscrew
- Power supply: three phase 380V ±5% 50/60Hz 30kV
- Support format: PLT, DXF, AI, etc.
- Laser power: 1000-2000W
- Machine weight: 1600kg
- Positioning accuracy: ±0.02mm
- Repeat accuracy: <0.02mm
- Operating mode: Follow-up & CNC
- Control system: German PA8000 digital laser control system

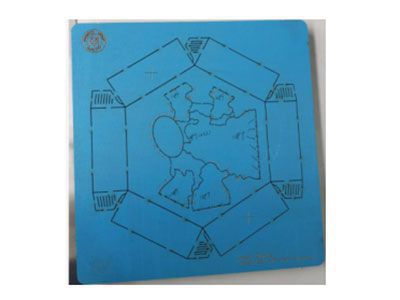

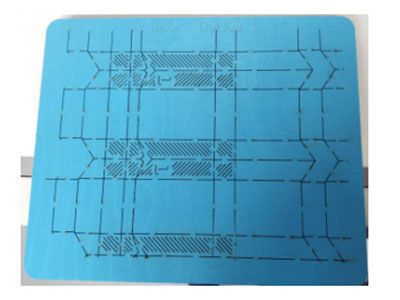

Examples of Die Boards
Other Available Working Areas
1525×1525 mm (DH-FLS-1515) 2100×1600 mm (DH-FLS-2116)
Features
- Fixed laser optical path, ensuring high cutting accuracy with uniform cut gap;
- Imported precision ground ballscrew offers high precision, thread pitch compensation can be achieved by using software;
- Electrical follow-up operation of cutting head guarantees the uniform cutting gap;
- Independent electrical control enclosure features IP54 protection against the risks of electrical faults caused by smoke and dust entering inside the enclosure;
- German PA8000 digital control system for laser cutting, offering high-speed high precision cutting with excellent stability;
- Dust and fume collection system efficiently removes dust and smoke during laser cutting process, creating a clean working environment;

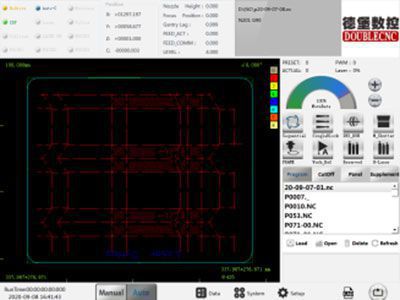

- Double (PA8000) CNC Software
-
1. User-friendly interface
2. Easy set-up and job-preparation
3. Individual configuration for different cutting layers
BENDER is an enterprise specialized in providing steel rule die making and box making companies with die making
solutions. We are able to manufacture appropriate diemaking tools and die making consumables from rule bender to die
board for customers’ demands. We know what die makers and box plants need to stay ahead in their competitive market,
as
a diemaking equipment manufacturer we continually invest in innovative solutions to ensure we are at the forefront
of
the industry of steel rule die fabrication. In addition to selling die making equipment and laser cutting systems,
we
are providing technical support as well to worldwide customers, wherever they are located.
